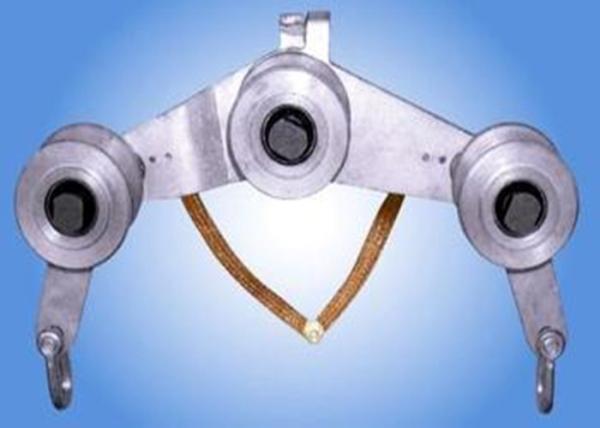

Three Wheel Structure Transmission Line Stringing Tools Earthing Pulley Block and Tackle

Name: Three Wheel Structure Transmission Line Stringing Tools Earthing Pulley Block and Tackle
Brand: XINYA
Price: 1 USD

Quality Three Wheel Structure Transmission Line Stringing Tools Earthing Pulley Block and Tackle for sale

Brand Name : XINYA

Model Number : SHL75D/SHG60D

Certification : ISO

Place of Origin : Jiangsu, China

MOQ : 5 pieces

Price : US $10 - 50 / Piece

Payment Terms : L/C, T/T,

Supply Ability : 1000 piece/pieces per month

Delivery Time : 2 days after payment

Packaging Details : carton

Pulley Material : Aluminum

weight : 4.6-5.7kg

Pulley Dia : 60-75mm

Application : stringing

Item : Three Wheel Structure Earthing Pulley Block

Contact Now

Supply Three Wheel Structure High Quality Earthing Pulley Block and Tackle

Application

Three Wheel Structure Earthing Pulley Block is installed on outlet side of tension machine and on line side of puller.

Characteristics

1. To eliminate include electricity in conductor and grounding wire when releasing wires.

2. Mounted on the outlet side of tensioners or the inlet side of puller and drawn by two stay wires.

3. Tri-sheave mechanism compacted automatically.

4. Maximum allowable current is 100A, time electrified is 0.1 second.

5. It is recommended that section of mating conductor is 25 mm2

Our Values

1, Take First-Class Quality as Target and First-class Service.

2, As Responsibility, To Succeed By Scientific Management.

3, Customer in Heart, Quality in Hand, Technology in the Lead.

Quality Control

We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.

Certification

Our company has passed ISO9001 and BV certificate of company inspection.Based on the principle of seeking for greater perfection,our company constantly improves the quality control system,strengthens the service consciousness of our employees,implements management philosophy of high quality and good service.

Technical Data

Product No.	Model Type	Pulley Dia(mm)	Applicable Conductor ACSR(mm2)	Weight(kg)	Material of sheave
80355	SHL75D	Φ75	Φ6-32	4.6	Aluminum
80356	SHG60D	Φ60	Φ6-25	5.7	Steel

Three Wheel Structure Transmission Line Stringing Tools Earthing Pulley Block and Tackle
